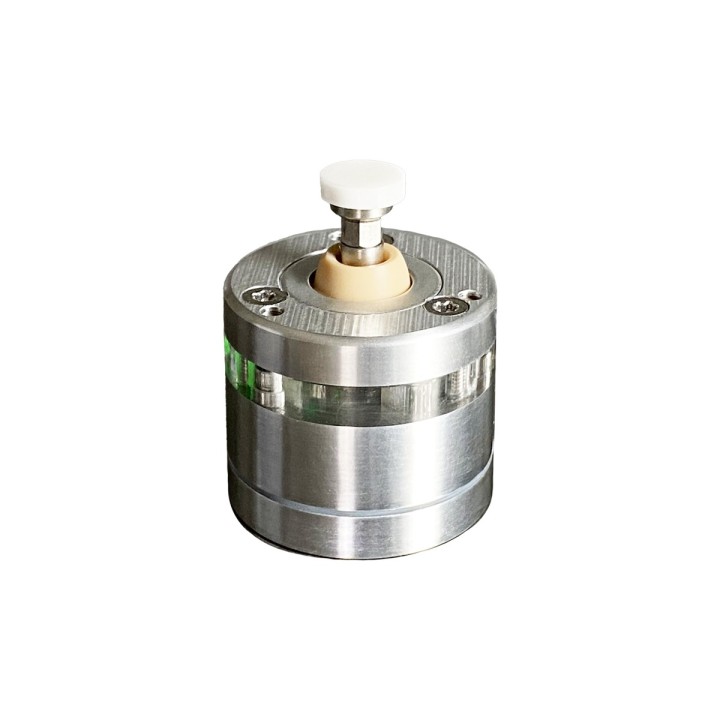

Wired CNC sensor

TSm sensor is used to determine tool height and diameter.

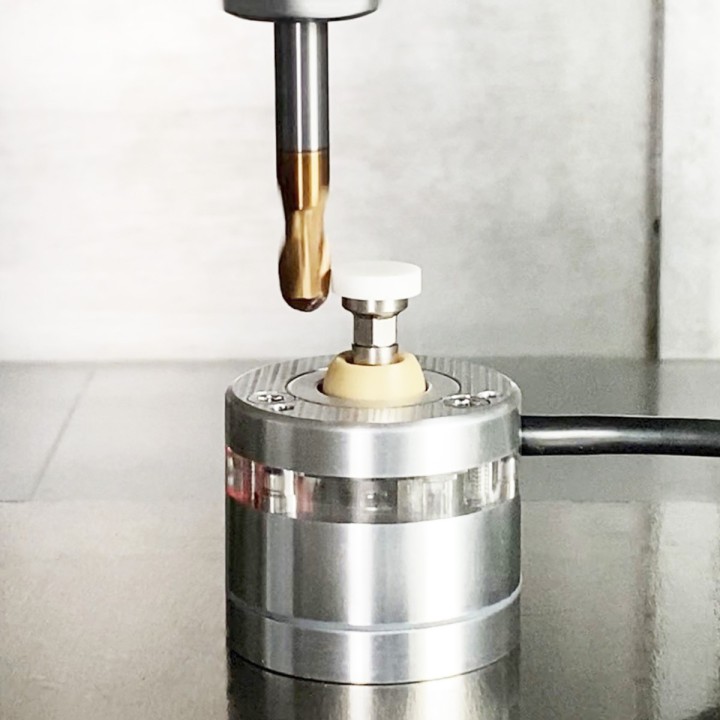

CNC milling machine generates coordinates when the tool touchs the TSm measurement pad and uses them to calculate:

  • Height of the tool
  • Diameter of the tool
Compatibility LinuxCNC, Mach3, embedded systems on industrial machines
Waiting for shipment about 5 days

visibility TSm v10 Video overview menu_book User guide

Specifications.

straighten Unidirectional repeatability
0.001 mm
open_with Search directions
±X, ±Y, -Z
settings_overscan Over travel limit (X,Y,Z)
7mm
compress Contact force
min 0.5N max 2N
height Diameter and overall height
D=34 mm, H=43 mm
radio_button_unchecked Diameter* and height of the ceramic pad
*Diameter 9.98 ±0.02mm, cylindrical and planar irregularity <2µm
D=10mm, h=2.5mm
bolt Power supply
+5v...+24v
flash_on Current consumption
<4mA
blur_on Dust protection
Yes
water_drop Splash protection
Yes
tune Adjustability
Yes
architecture Possibility to measure tool diameter
Yes

  • Reference
    Vers Tsm v10
  • In stock
    16 Items
  • Condition
    New
