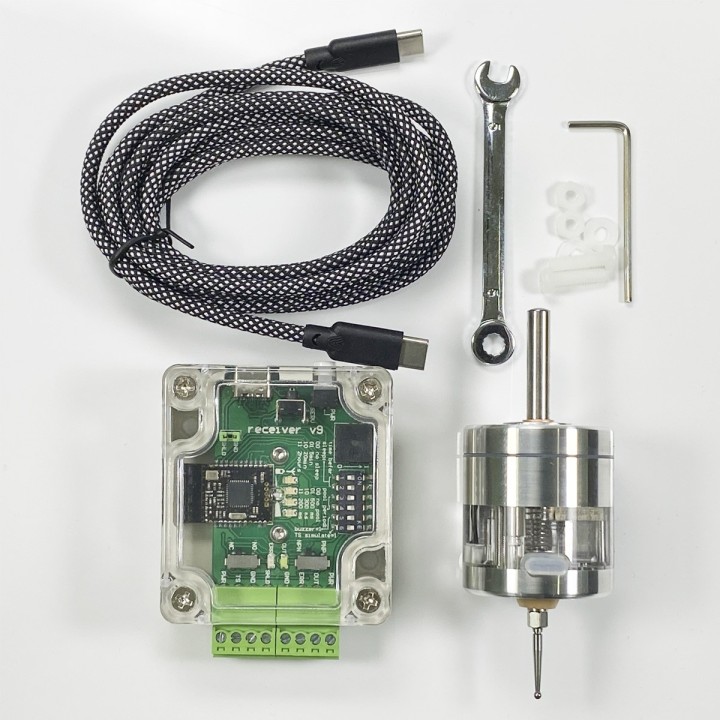

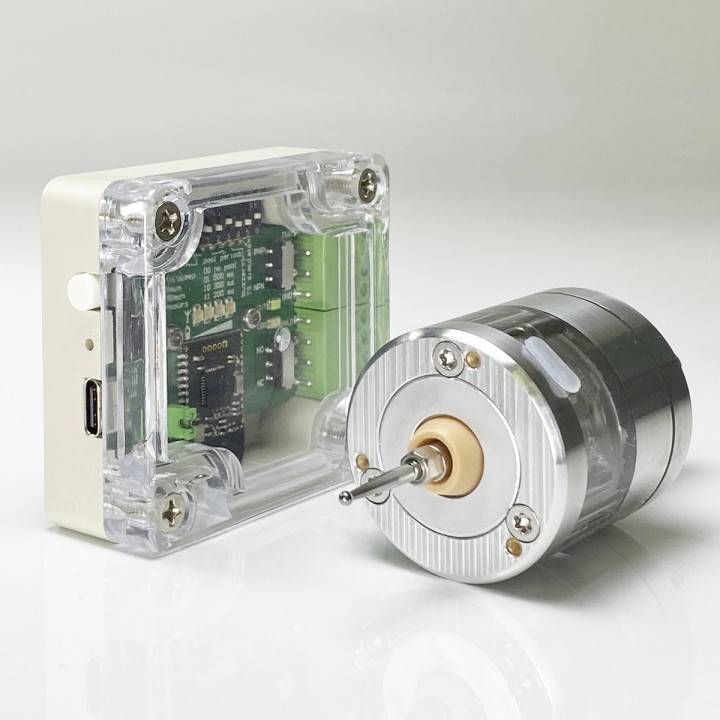

Wireless touch probe Vers WLR v9
Wireless touch probe Vers WLR v9

WLR v10

$450
$450

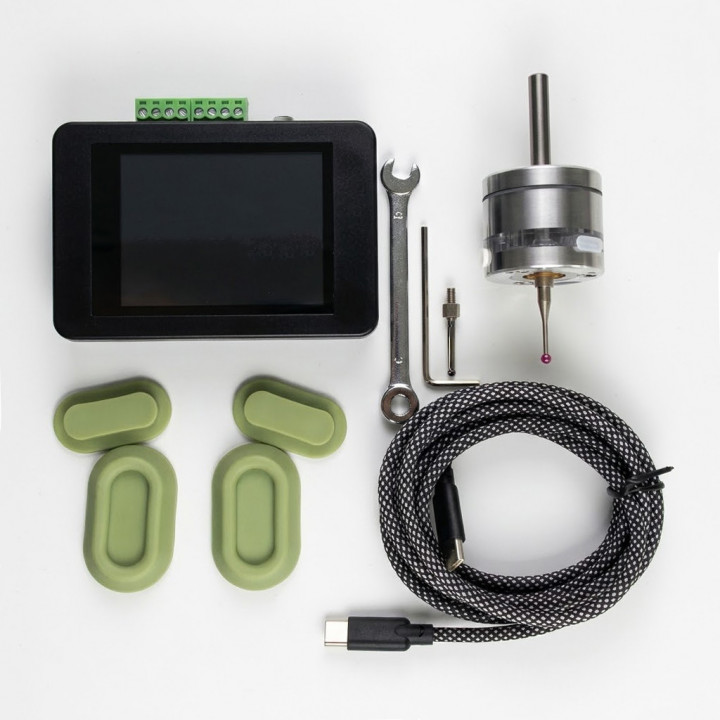

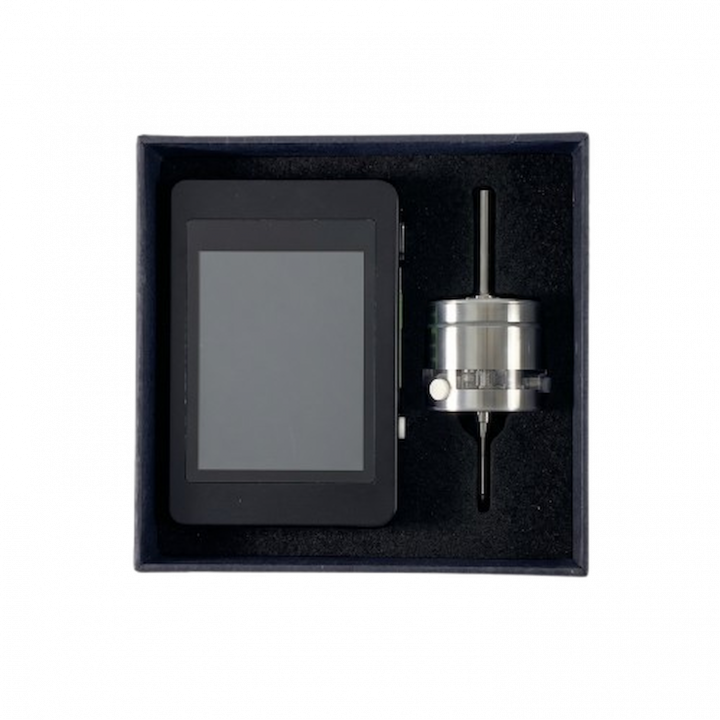

Wireless CNC touch probe

Vers WLR wireless touch probe is designed to determine the exact coordinates of objects mounted on a CNC milling machine.

The CNC system generates these coordinates when probe stylus touches the object and uses them to:

  • Link the machining program to the location of the workpiece,
  • Measure lengths and diameters
  • Search for hole centers and edges
Compatibility
LinuxCNC, Mach3, embedded systems
Connection
The probe communicates with the receiver at 2.4 GHz radio frequency
Waiting for shipment about 14 days

visibility TSm v10 Video overview menu_book User guide

Specifications

straighten Unidirectional repeatability
0.001 mm
open_with Search directions
±X, ±Y, -Z
settings_overscan Over travel limit (X,Y)
±10mm
vertical_align_bottom Over travel limit (Z)
-7 mm
compress Contact force in XY
min 0.5N max 0.8N
download Contact force in Z
2N
timer Tripped signal delay
1,5 ms
battery_std Power supply of probe (transmitter)
LIR2477  3.6v
power The possibility of charging
Yes
flash_on Current consumption of probe
<0,4mA
snooze Current consumption in sleep mode
<0,02mA
settings_input_component Power supply of receiver
+5v...+24v
multiline_chart Current consumption of receiver for different Vin
21 mA (5v)
14 mA (9v)
12 mA (12v)
8 mA (24v)
settings_input_antenna Radius of the radio channel
6 m
wifi Radio frequency
2,4 GHz

  • Reference
    Vers WLR v9
  • In stock
    111 Items
  • Condition
    New
