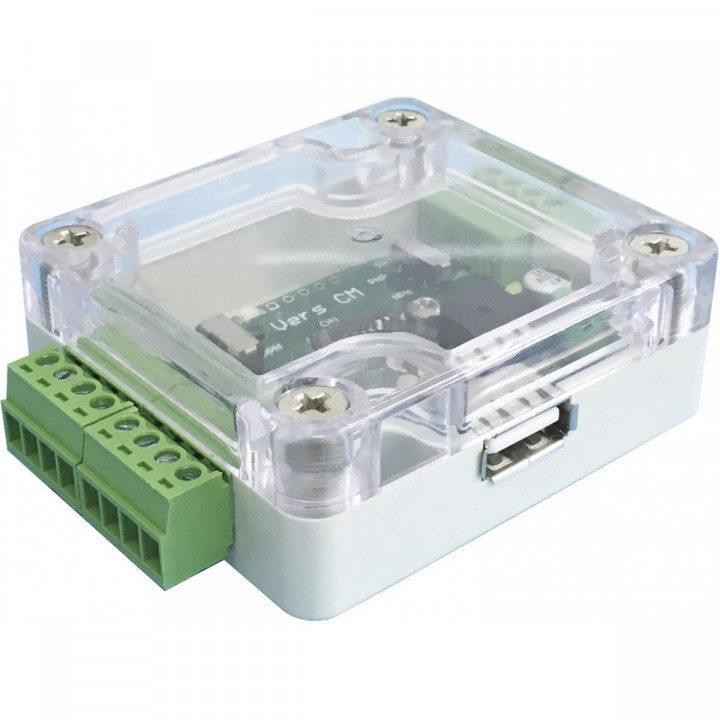

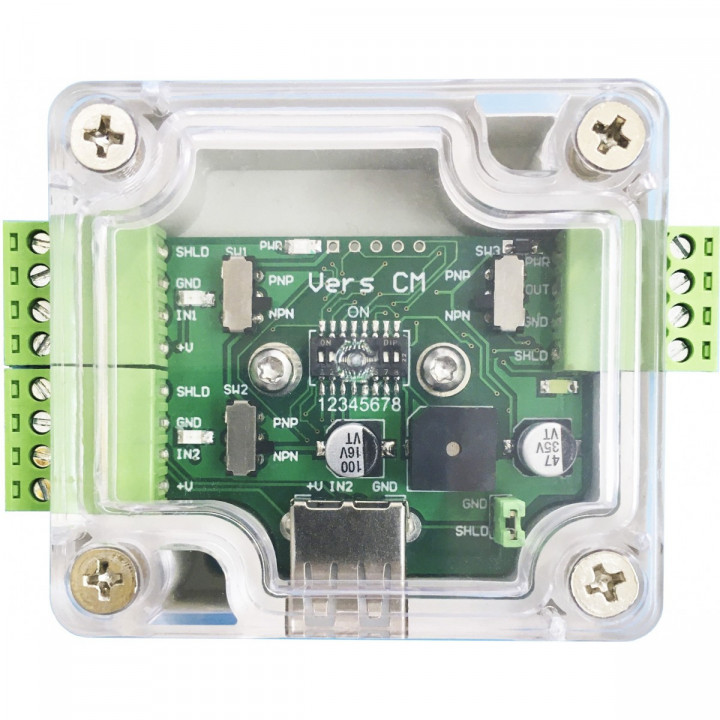

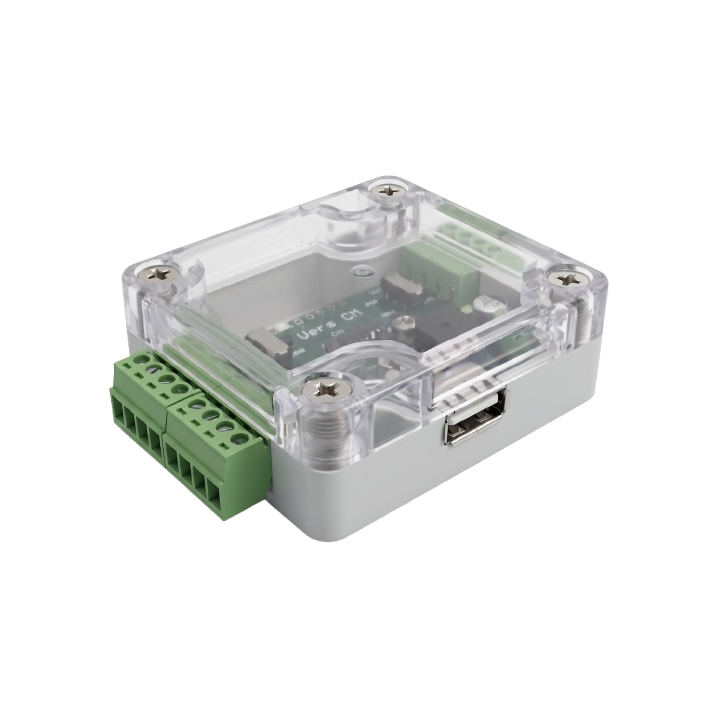

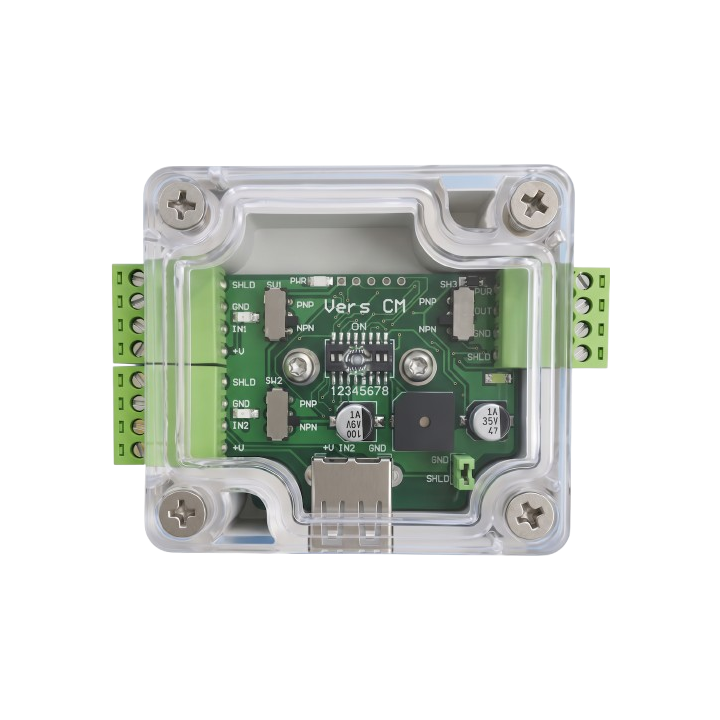

Connection module
Price:
$50
$50
Core Capabilities
call_merge Multiplexer
Combining the signals of two sensors into one common output.
transform Converter
Accepts any type of sensors at the input and provides any type of output (PNP-NPN-NC-NO).
history_toggle_off Anti-bounce
Hardware signal filtering with adjustable delays: 0, 5, 25, or 100 ms.
vibration Anti-vibration
Intelligently ignores false triggers caused by shock and machine vibration.
gpp_good Protection
Full protection against short circuit, polarity reversal, overload, and overvoltage.
This device is designed for easy connection to the controller of any wired sensors, including third-party sensors.

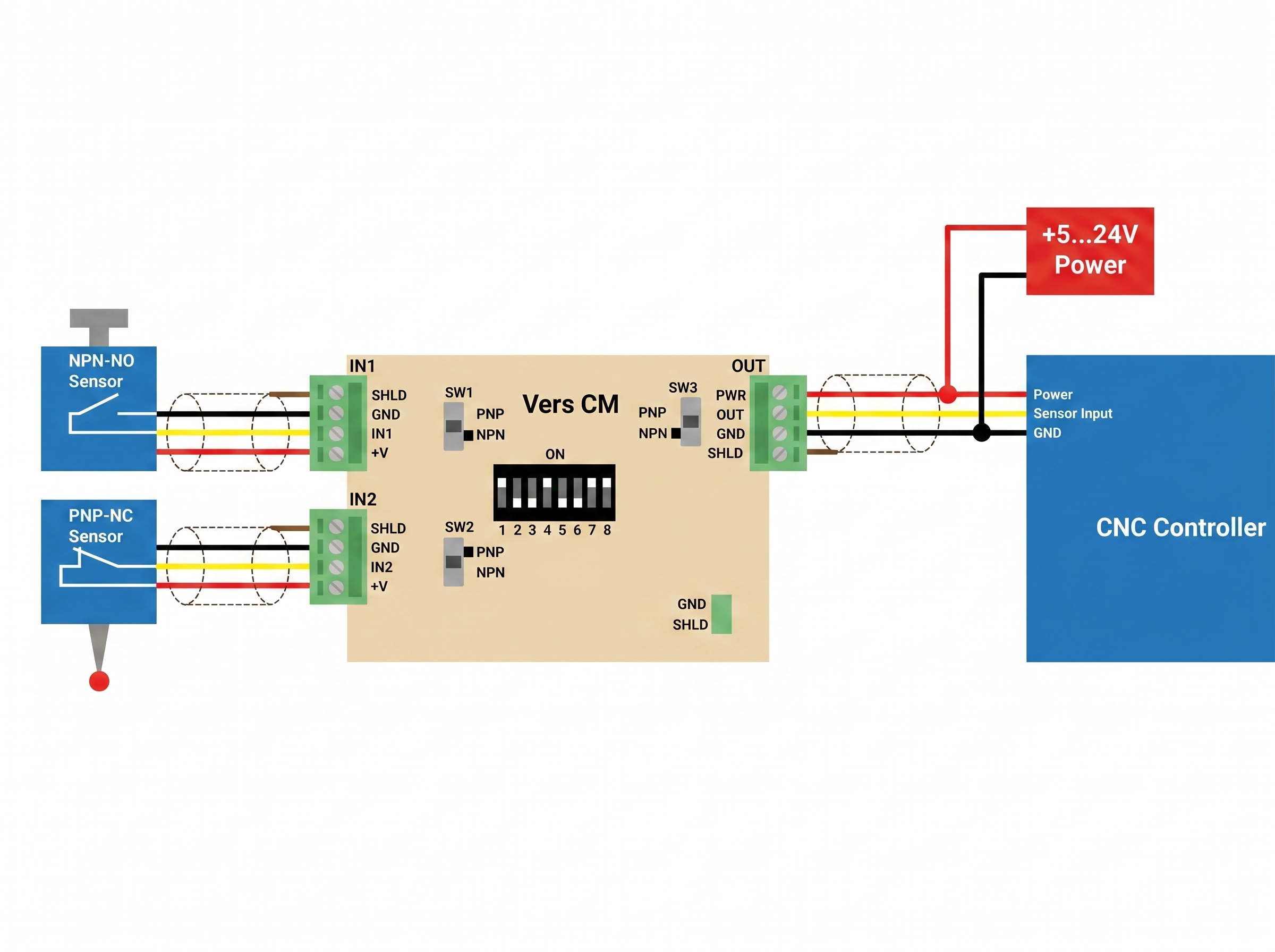

Connection Example
info
We recommend connecting cable shields to the SHIELD pins on both the input and output.
By default, the CM has a SHILD-GND jumper installed.
If your controller already has a SHILD-GND connection, the jumper in the CM can be removed.

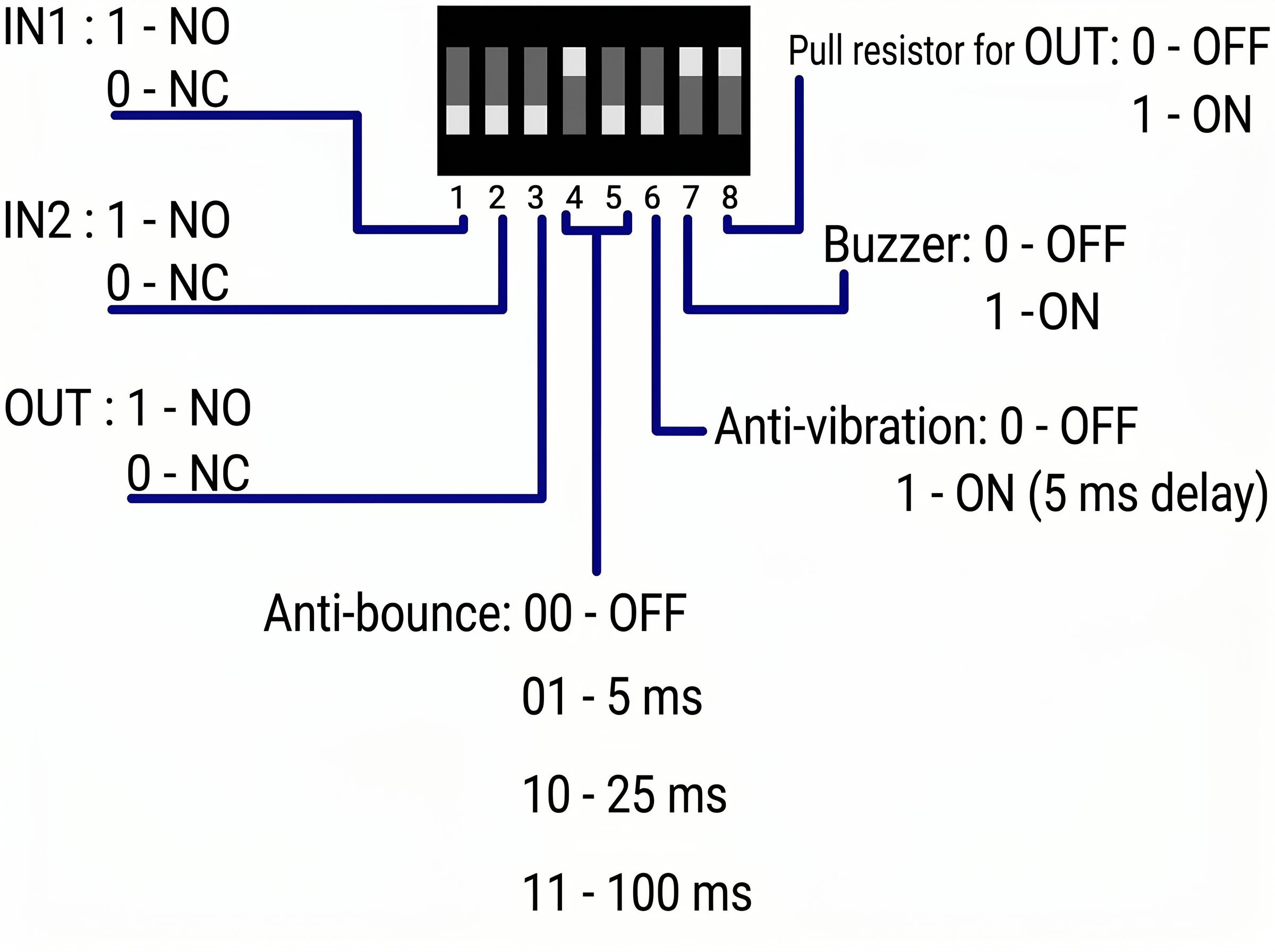

Purpose of DIP-8 Switch
NO - normally open connection
NC - normally closed connection
Signal Processing Analysis
Anti-bounce Filtering
Anti-bounce: OFF
Input signal (yellow) vs Output signal (green)
Anti-bounce: ON
Cleaned and stabilized output signal
Anti-vibration Filtering
Anti-vibration: OFF
Anti-vibration: ON
error_outline
5 ms delay is added when this filter is active, which should be taken into account when measuring.

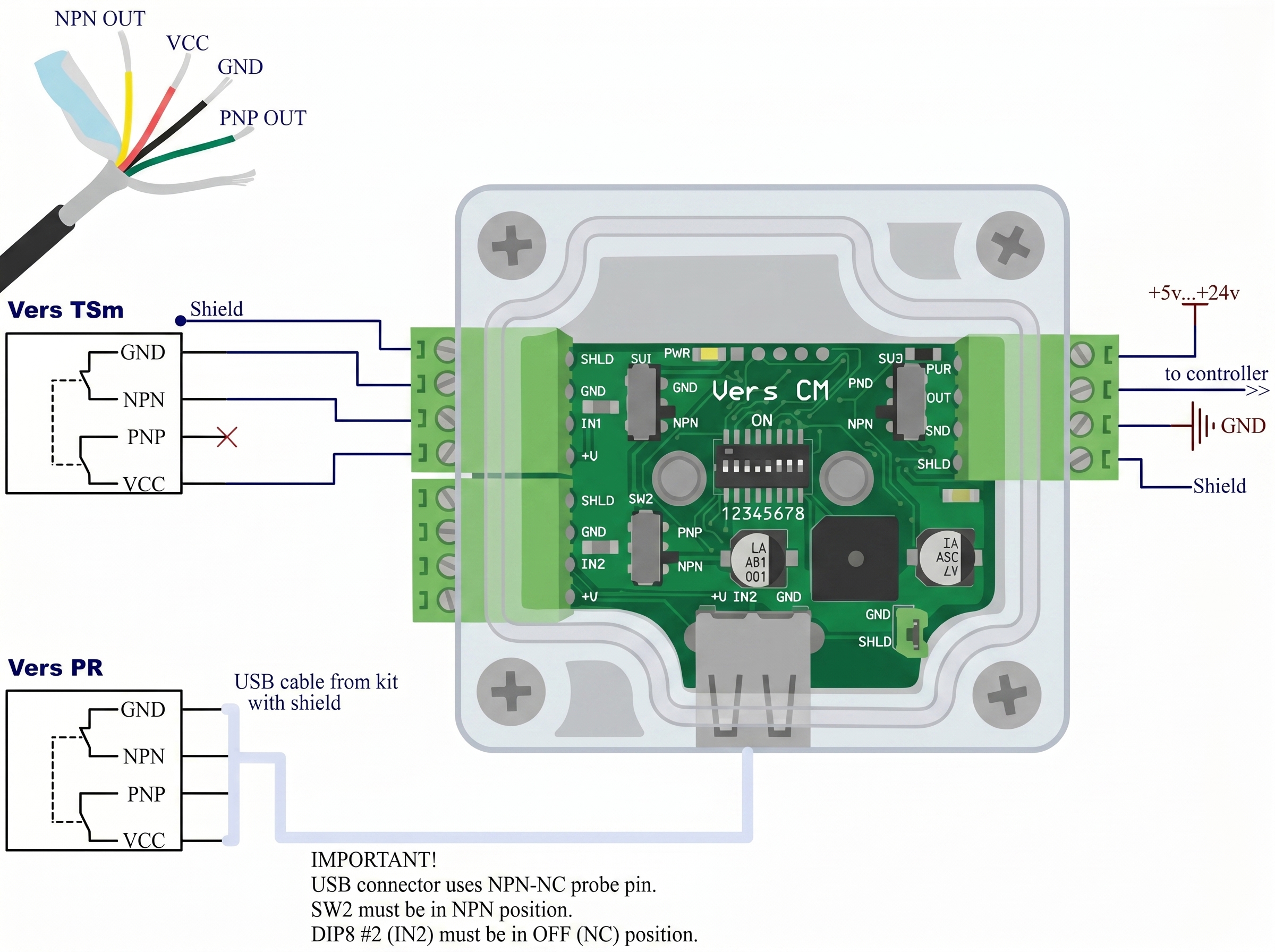

Connection: Vers CM + Vers PR + Vers TSm
-
ReferenceVers CM v1
-
In stock111 Items
-
ConditionNew
