PR v9

User Guide

info_outline
This User Guide applies to the currently released PR v9 model. For earlier versions, the User Guide can be found at the corresponding links in the Archive.

Purpose

Touch probe PR is designed to determine the exact coordinates of objects mounted on a CNC milling machine. The CNC system generates these coordinates when the VersPR stylus touches the object and uses them to link the processing program to the workpiece location, to measure lengths, diameters, to search for hole centers, etc.

The device can be used with various CNC systems: LinuxCNC, Mach3, embedded systems on industrial machines, etc. The device is connected to the CNC system via a cable (see section Connection).

PR v9 main features

  1. - unidirectional repeatability 0.001 mm.
  2. - tungsten carbide pin-ball contacts.
  3. - over travel limit (X,Y) ±10mm, (Z) -7mm.

Two connector options:
  • Magnetic - the most convenient jack, suitable for working with plastics and non-ferrous (non-magnetic) metals.
  • Waterproof - for work in humid environments or with steels.
The probe is equipped with both NPN-NC and PNP-NC output types. Protection against short circuits of the output to power or ground, from power reversal.

Specification

straighten Unidirectional repeatability
<0.001 mm
bolt Power supply
+5v...+24v
control_camera Search directions
±X, ±Y, -Z
bolt Current сonsumption
<4mA
settings_overscan Over travel limit (X,Y)
±10 mm
compress Contact force X Y
min 0.5N max 0.8N
vertical_align_bottom Over travel limit (Z)
- 7 mm
download Contact force in Z
2N
build Adjustability
Yes
shield Dust & Splash protection *only for version with waterproof jack
Yes

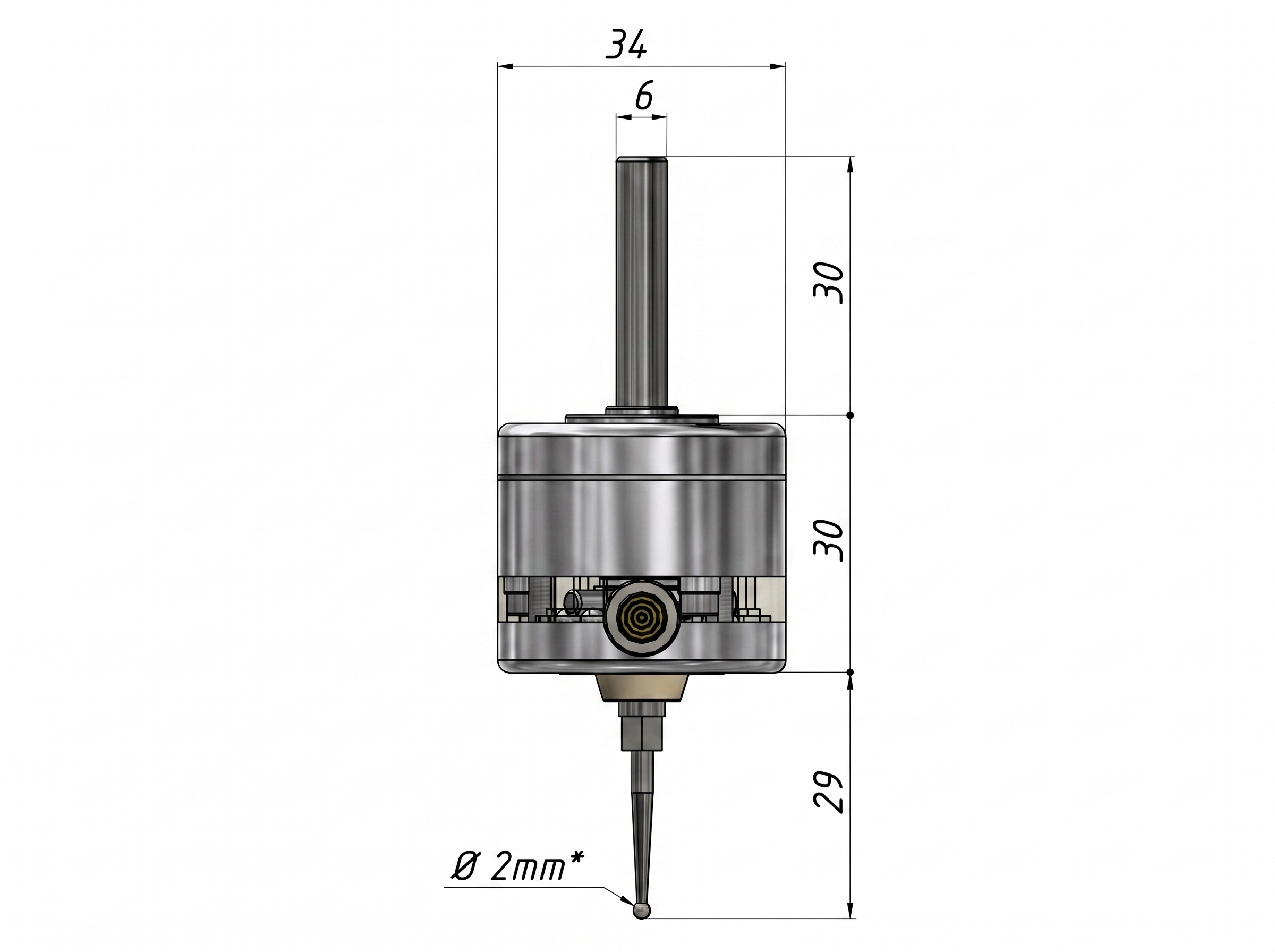

Vers PR v9

* All sizes are for reference. The diameter of the ball (tip of the stylus) is approximate, in fact it can differ from the specified within ± 0.01 mm, spherical irregularity <0.001 mm.

Adjustment

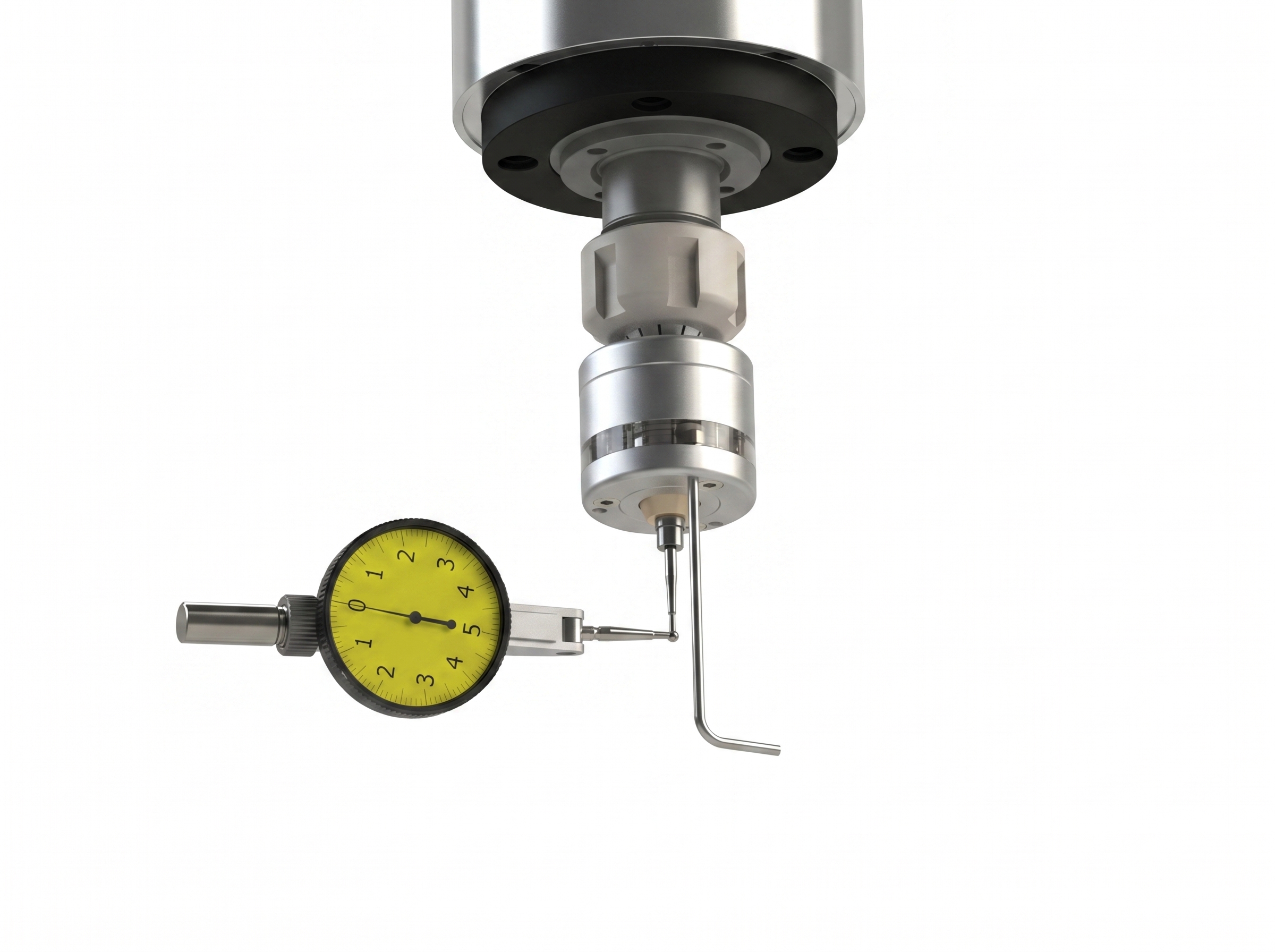

It is necessary to adjust the probe before starting the measurement. The probe is installed in the spindle, a check indicator is placed near to it (Fig. 1). The indicator should be sensitive to a weak effect of 0.3-0.5N (for example, most lever indicators have this property). The axis of the spindle is rotated by hand and the amplitude of the deflection of the stylus ball from the axis of rotation is controlled by the indicator.

Fig.1. Adjustment Fig. 1

The deviation is eliminated by turning the adjusting screws with a 2mm hex key from the kit. When adjusting, both tightening and loosening of the screws are used.

pan_tool
Important! It is recommended to hold for a short lever of the key, so as not to develop excessive force. It will be necessary to perform several cycles of spindle axis rotation — control — adjustment in order to achieve a minimum deviation acceptable for a particular measurement.

Connection

The sensors are equipped with NPN-NC and PNP-NC outputs, polarity reversal protection, protection against short circuits of the output to power and ground. Both NPN and PNP outputs are built into the device and routed to separate pins.

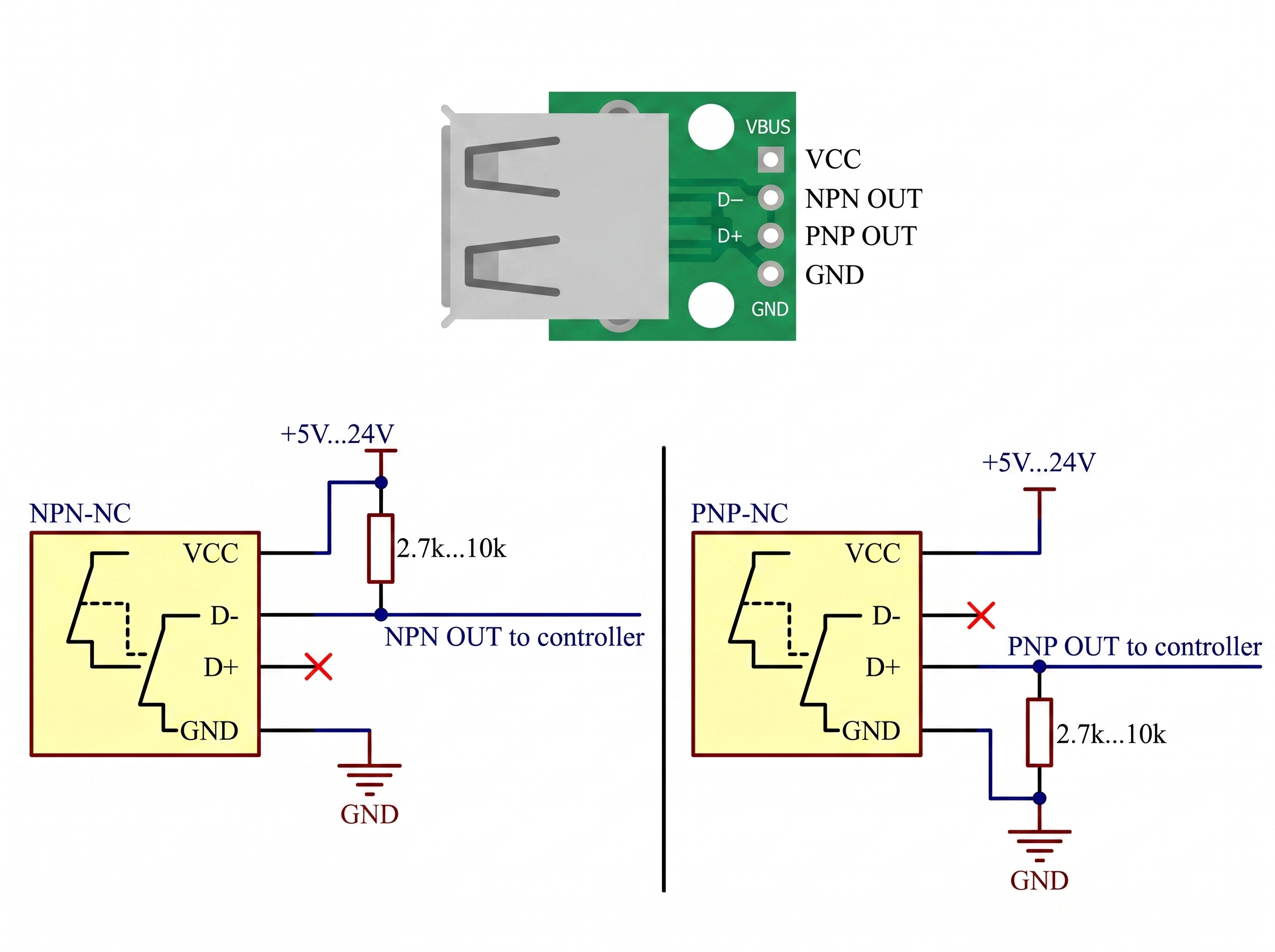

Wiring diagram to the machine for the version with magnetic connector (Vers PR v9 magnetic jack):

Vers PR v9 magnetic jack wiring diagram

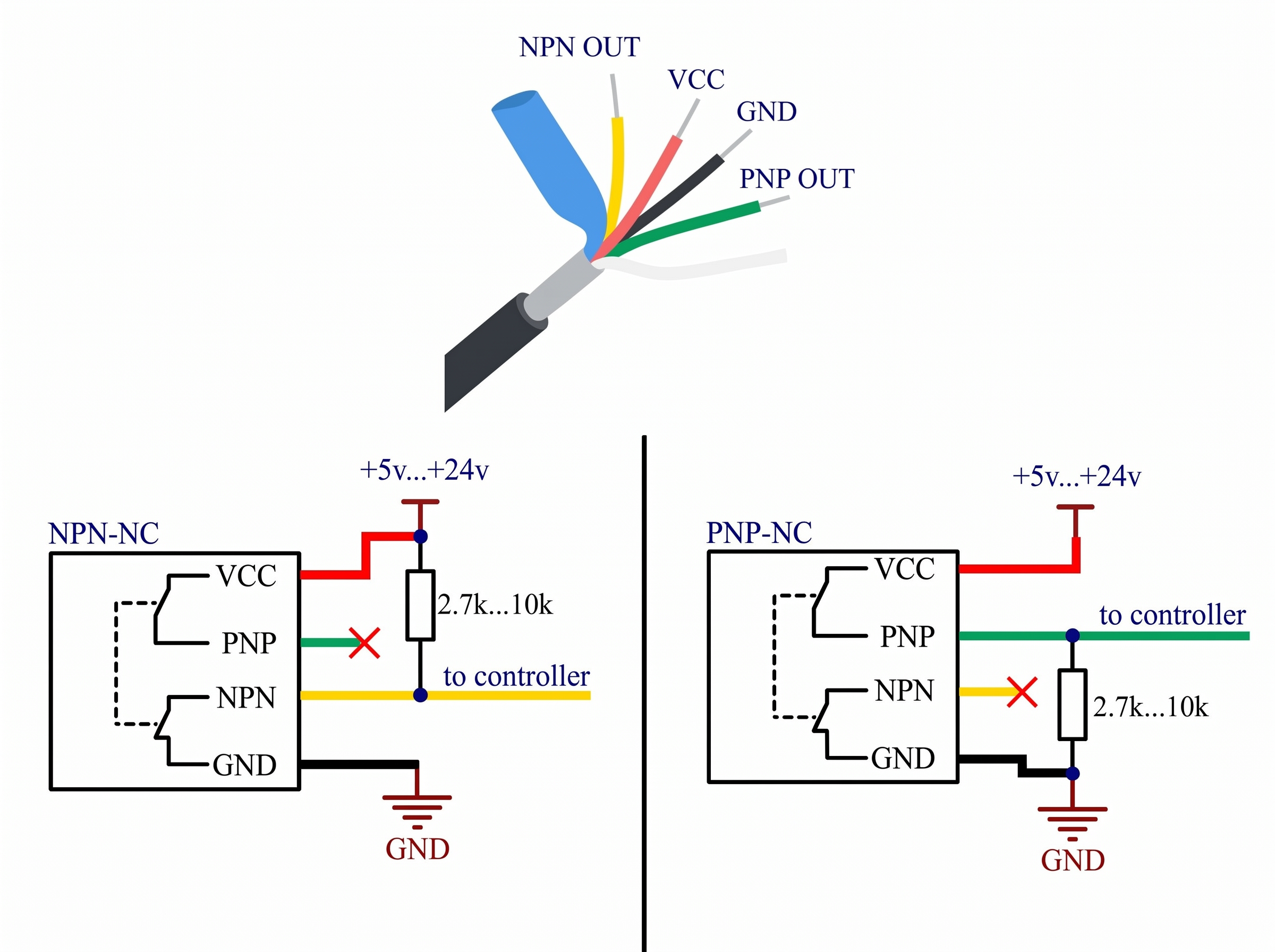

Wiring diagram to the machine for the version with waterproof connector (Vers PR v9 waterproof jack):

Vers PR v9 waterproof jack wiring diagram

The colors of the wires inside the cable from the kit correspond to the colors of the connections on the diagram.

Using

There is software ProbeScreen in free access for convenient work with probe in the LinuxCNC system.

And Probe Wizard for work in the Mach3 system.
